Ibanez 3-hole Pickup Rings

Ibanez 3-hole Pickup Rings

Store/Pickups & Parts/Pickup Rings
SKU 00021NCC
$20.00
Sold out
Style and Color
Sold out
Product Details

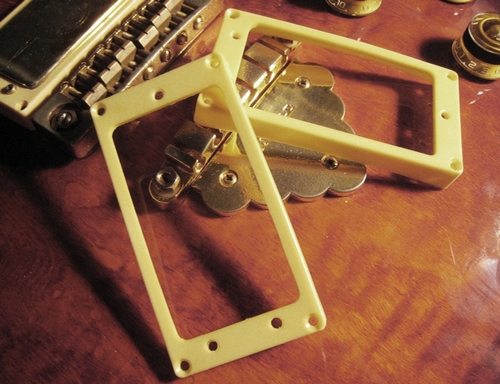

Pickup rings 3-hole. Price is per ring. Original replacement for '78 and later 3-hole rings. Carved top rings are for AR, PF and some MC series guitars. AS and AM require a flat bottom neck and arched bridge. The LR10 actually uses flat rings for neck and bridge. If unsure let me know what model you have. These have the wider guitar body mounting screw spacing, 84-85mm x 40mm (3.307-3.346" x 1.574"), found on Ibanez guitars and some other brands made in Japan, Korea, etc.. Outside dimensions are 91mm x 46mm or 3.58" x 1.8". The height adjustment screw holes on the tilt side are 19.6mm (0.770") apart center to center. All rings are sloped from back to front. Original Cream color varies due to manufacture date and the effects of aging. If you want your Cream rings to match I would suggest ordering a pair. Does not include screws or springs.
