Ibanez 2-hole Pickup Rings (pre 1978)
+3
+2

Ibanez 2-hole Pickup Rings (pre 1978)

Store/Pickups & Parts/Pickup Rings
SKU 00022NCB
$20.00
Position, Style and Color
In stock: 1 available
1
Product Details

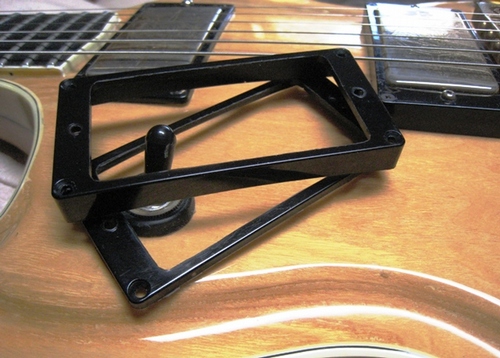

Pickup rings 2-hole. Price is per ring. Exact reproductions of '77 and earlier 2-hole rings as found on Ibanez Professionals, 26xx and 23xx series, etc. These were also used on other brands made in Japan, Korea, etc.. There are two sizes used on these early models:

1972 to early 1974 - The larger ring was used with humbucking pickups that have the large flat pole pieces. It is 85mm x 37.5mm or 3.35" x 1.48" measured from the center of the body mounting holes. Outside dimensions are 95mm x 47mm or 3.74" x 1.85".

1974 to 1978 - The smaller, more common ring, is 82mm x 38mm or 3.23" x 1.496" measured from the center of the body mounting holes . Outside dimensions are 89mm x 45mm or 3.5" x 1.77".


Original Cream color varies due to manufacture date and the effects of aging. If you want your Cream rings to match I would suggest ordering a pair. Also available in white for the 2351M. Does not include screws or springs.
