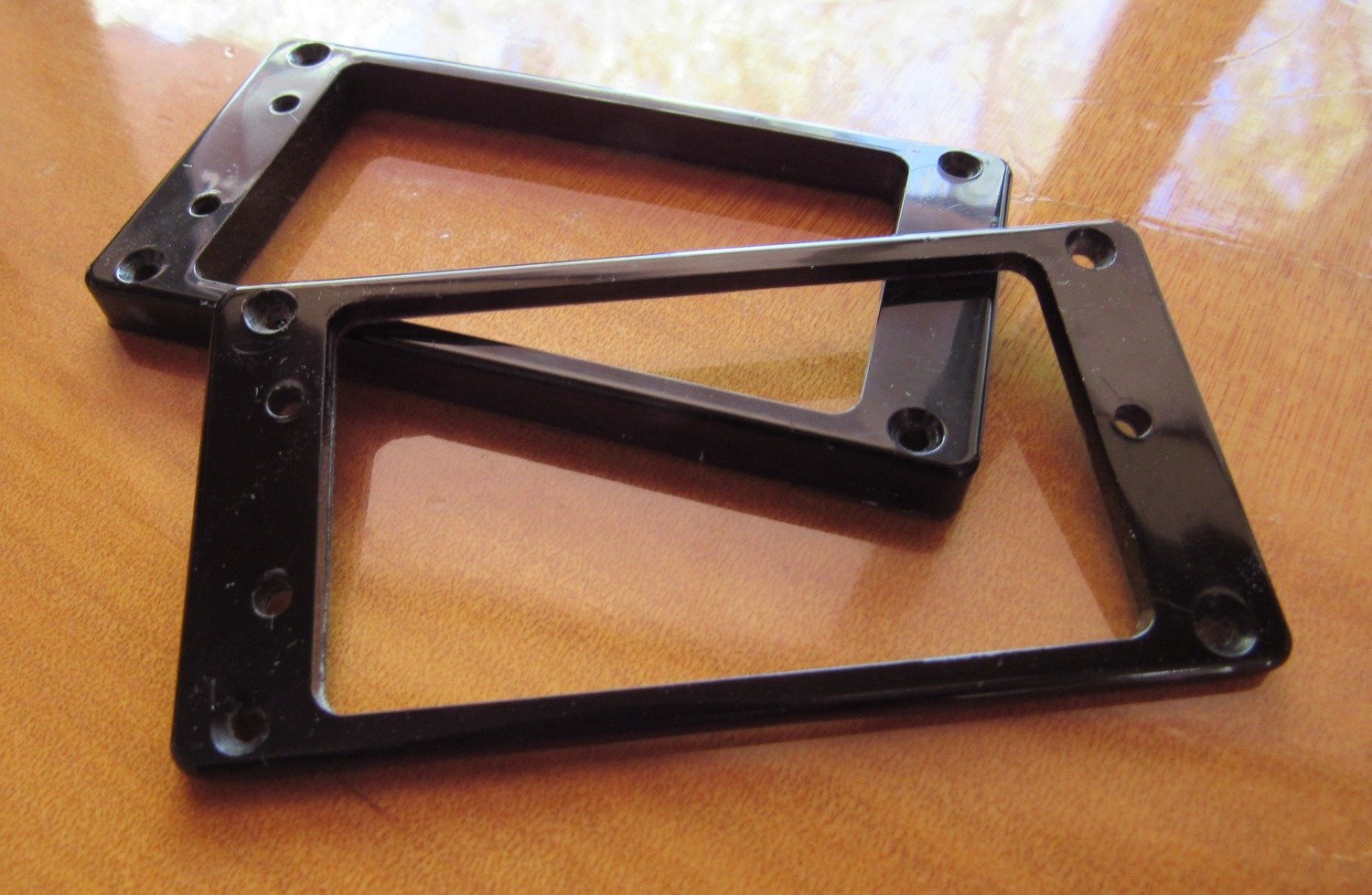

Guild Pickup Rings

Guild flat bottom, non-slanted pickup rings for original full size HB-1 guitar pickups from the '70s-'80s. NOTE: 1970-1973 models have rings that are slightly narrower side to side. The way to tell if they will fit is if the holes for the height adjustment screws are closer to the pickup than the edge of the ring. The 1970-1973 rings have the adjustment holes equidistant between the pickup and ring edge. Dimensions are: Exterior 3-3/4" x 1 7/8" Interior 2-13/16" x 1-9/16".Molded from originals. Available in neck and bridge. Price is per ring. This is the link to a great article that discusses Guild pickups and ring sizes. http://www.gad.net/Blog/2011/11/25/guild-full-size...

Ibanez 2 hole pick up rings (Pre 1978)

Exact reproductions of '77 and earlier 2-hole rings as found on Ibanez Professionals, 26xx and 23xx series, etc. These were also used on other brands made in Japan, Korea, etc.. There are two sizes used on these early models:

1972 to early 1974 - The larger ring was used with humbucking pickups that have the large flat pole pieces. It is 85mm x 37.5mm or 3.35" x 1.48" measured from the center of the body mounting holes. Outside dimensions are 95mm x 47mm or 3.74" x 1.85".

1974 to 1978 - The smaller, more common ring, is 82mm x 38mm or 3.23" x 1.496" measured from the center of the body mounting holes . Outside dimensions are 89mm x 45mm or 3.5" x 1.77".

Original Cream color varies due to manufacture date and the effects of aging. If you want your Cream rings to match I would suggest ordering a pair. Also available in white for the 2351M. Does not include screws or springs.

Ibanez 2663TC & Greco Mirage M-800 pickup ring

Fits Ibanez and Greco triple coil pickup. Gloss black.

Ibanez 3 hole PU Rings

Pickup rings 3-hole. Price is per ring. Original replacement for '78 and later 3-hole rings. Carved top rings are for AR, PF and some MC series guitars. AS and AM require a flat bottom neck and arched bridge. The LR10 actually uses flat rings for neck and bridge. If unsure let me know what model you have. These have the wider guitar body mounting screw spacing, 84-85mm x 40mm (3.307-3.346" x 1.574"), found on Ibanez guitars and some other brands made in Japan, Korea, etc.. Outside dimensions are 91mm x 46mm or 3.58" x 1.8". The height adjustment screw holes on the tilt side are 19.6mm (0.770") apart center to center. All rings are sloped from back to front. Original Cream color varies due to manufacture date and the effects of aging. If you want your Cream rings to match I would suggest ordering a pair. Does not include screws or springs.

Ibanez Musician and Greco Open Top Pickup Ring

Ibanez Musician and Greco Open Top Pickup Ring. Price is for one ring. These are an exclusive innovation; pickup rings for installing different pickups without drilling new holes or altering your guitars appearance. Advantage over the original covers is you can accurately position the pickup pole pieces closer to the strings. Pickups mount easily and securely using a couple of dabs of hot glue which can be removed without damaging the pickup or cover. Pickup tabs will need to be bent to clear the screw holes but it is reversible. Available in brown, black and cream. Does not include the pickup, screws or springs. Ring measures 1.64"(41.66mm) x 3.6"(91.45mm)

Yamaha SG, SGB, SA Three Hole Pick Up Rings

Exact reproductions of the rings used in the late '70s thru the '80s. Body mounting holes are 35.75mm (1.4") x 80.45mm (3.167") and two hole side height adjusting is 12mm apart. Available in black or cream.
